GENERAL

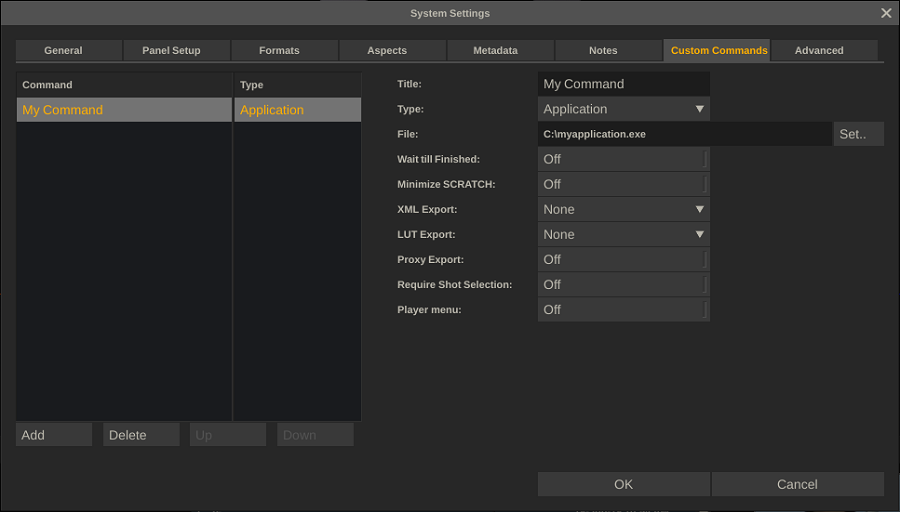

In the Preferences dialog in the Custom Commands tab you can define Custom Commands. There are different types of Custom Commands:

• Define a button in SCRATCH to start an external script or application or open a web page.
• Define a button to initiate a plug-ins.
• Define a button to start an XSL Transform.
• Define a Post Render command to run an external script or application after a render of an output node completes.
• Define a System Event command to run an external script or application after a event in the application: Start Application, Stop Application, Select User, Create-, Open- and Close-Project.
• Define a plug-in to be used on the reference monitor only.

The first three types of Custom Command buttons are placed in the Tools menu of the Construct and the Settings menu in the Player. Note that there is limited space to show buttons. Post Render commands are available with any output node in the Post Render tab in the Output menu in the Construct. Custom Commands that are initializing plug-ins for the second monitor are listed in the Dual Head section in the Settings-Monitor menu of the Player.

TITLE

The label that is displayed on the command button or in the post-render option list with any output node.

TYPE

Select the type of Custom Command. Depending on the type additional options are available.

APPLICATION / SCRIPT

FILE

The Path and Filename to the application or script to execute.

WAIT TILL FINISHED

If enabled SCRATCH will return control over the User Interface only after the application or script closes. With this option enabled it become possible to import xml into the current project to update it. When enabled, SCRATCH will include a second command line parameter to the application/script with the location and filename where the application/script should write the xml to import into SCRATCH.

Note that you should be careful to use this option with applications/scripts that run for a considerable amount of time as it might appear to the user that SCRATCH has become unresponsive and is hanging.

MINIMIZE SCRATCH

When enabled SCRATCH will minimize itself before running the application or script.

XML EXPORT

Options to make SCRATCH export project XML data before executing the application/script. The path and filename of the exported XML are passed as a command line parameter to the application/script. The following options are available:

• None - no xml is created.
• Project - the full project xml is written.
• Group - only the current selected group is included.
• Construct - only the current selected Construct is included.
• Selection - only the current selected shots are included.

By default any xml is stored in the temp folder of the current project-folder; C:\ProgramData\Assimilator\Projects\MyProject\temp\ (PC), Library/Application Support/Assimilator/Projects/MyProject/temp/ (OSX). But as mentioned, the location is also passed to the application/script as a command line parameter. The structure of the the XML is discussed in detail in Appendix B - Database, XML, XSLT and HTML.

LUT EXPORT

Option to store the grade of the shots included in the XML in the form of a LUT: 1D, 3D or XML LUT.

PROXY EXPORT

Option to store a proxy image of each shot included in the XML as a jpeg file.

REQUIRE SHOT SELECTION

If set, the command button will be greyed out if no shot is selected in the Construct. This way you can force a selection before executing a script.

PLUGIN

PLUGIN

Select a specific Plug-in

PRESET

Select a plug-in preset file. Please see Chapter 7 - The Matrix for details on saving plug/in preset files.

USE ON DUAL HEAD

Enabling this option will add the entry to the Dual Head Effects list as described in Chapter 5 - The Player, the Monitor Settings paragraph, rather than adding a command button.

ENTER PLAYER

With this option enabled SCRATCH will after creating the plug-in automatically open the node in the Player.

POST RENDER

The Post Render - custom command type has similar parameters as the Application/Script type. Also, similar to the Application custom command, the Post Render command is passed (as command line parameter) a file reference to an XML file with details on the render. Also, the actual XML is also stored in the temp folder with a project. The structure of the the XML of a render is discussed in detail in Appendix B - Database, XML, XSLT and HTML.

Also note that even though the external script / application has access to the rendered files - these might be in use and as such it can not freely move or rename them (this applies to most container formats (MXF, Quicktime, etc.). In general is is not advisable to try to move or rename rendered files in this way as SCRATCH would still try and maintain a link to the rendered files. Rather you should make a copy if needed.

SYSTEM EVENT

The System Even - custom command type has similar parameters as the Application/Script type. Also, similar to the Application custom command, the System Event command is passed (as command line parameter) a file reference to an XML file with details on the render. Also, the actual XML is also stored in the temp folder with a project. The structure of the the XML of a render is discussed in detail in Appendix B - Database, XML, XSLT and HTML.

There are currently 6 system Events that can be used to trigger an external script. Each of the events will pass along different information (xml) to the external script.

• Start Application: passes the SCRATCH application data folder.
• Stop Application: passes the SCRATCH application data folder.
• Select User: passes the selected User data folder. This event is also always fired once on startup.
• New Project: passes the newly created project folder. Only fired when manually creating a new project.
• Open Project: passes project xml.
• Close Project: passes project xml.

XSL TRANSFORM

FILE

The full path and filename of the XSLT script.

EXPORT TYPE

The extension for the result file of the XSL Transformation.

WEBPAGE

URL

The full web address, including the http:// protocol prefix. Rather than creating an xml file with information on the current selection -the URL is extended with the following fields:

  SCRATCH_WATCH_FOLDER - if set the system watch-folder.
SCRATCH_PROJECT_FOLDER - the project folder of the current project.
SCRATCH_MEDIA_FOLDER - the default media folder of the current project.
SCRATCH_RENDER_FOLDER - the default render folder of the current project.
SCRATCH_EXPORT_FOLDER - if set the auto-export folder for the project.
SCRATCH_PROJECT - the name of the current project.
SCRATCH_GROUP - the name of the current selected group.
SCRATCH_CONSTRUCT - the name of the current selected Construct.

If a shot is selected:

  SCRATCH_SLOTNAME - the name of the slot selected shot resides.
SCRATCH_SLOTNR - the index of the slot the selected shot resides.
SCRATCH_SHOT_UUID - the unique identifier of the shot.
SCRATCH_SHOT_FILENAME - the filename (of the first frame) of the shot.
SCRATCH_SHOT_IN - the in-point as set by the user.
SCRATCH_SHOT_OUT - the length of the shot.
SCRATCH_SHOT_CURRENT - the current frame of the selected shot.

The fields are added as parameters in this format:

  http://www.website.com?SCRATCH_PROJECT=projectname&SCRATCH_GROUP=groupname&.......
